RAKU 36

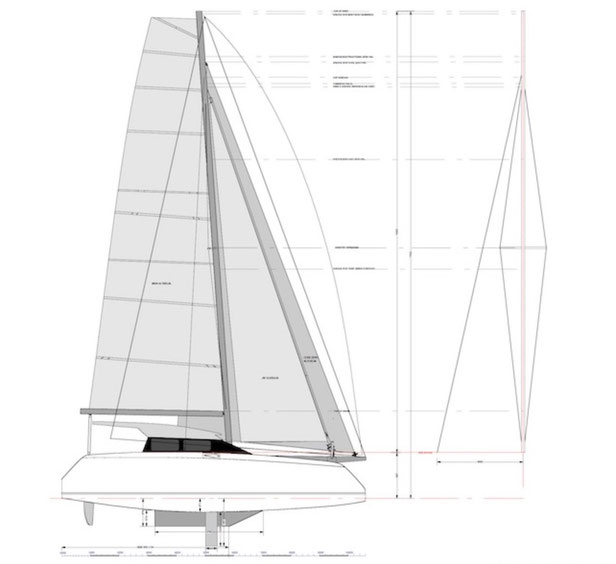

Raku 36 Sail Plan and Specs

BASIC SPECIFICATIONS

LOA

BOA

Beam CL-CL

Hull Draft

Hull B:L

Draft Rudder

Draft Daggerboard

Draft Fixed Keel

Displacement DWL

Disp Light (DWL-50mm)

Disp. Max. DWL+50mm

Payload Disp.DWL+50mm

Sinkage Rate (2 hulls)

Mast Above Deck

Air Draft

Aux Power

SAIL AREAS

Main

Self Tacking Jib

Code Zero/Screecher

MH Gennaker

DIMENSIONS IN MM

11m (36')

6105

2400

415

1:13

1063

2100

1040

3718kg

3021kg

4469kg

751kg

145kg/cm

15400

17000

Twin OB Motors 10-15HP

or 10hp inb. Sail Drive

STANDARD RIG

44.76

18.25

40.41

66.62

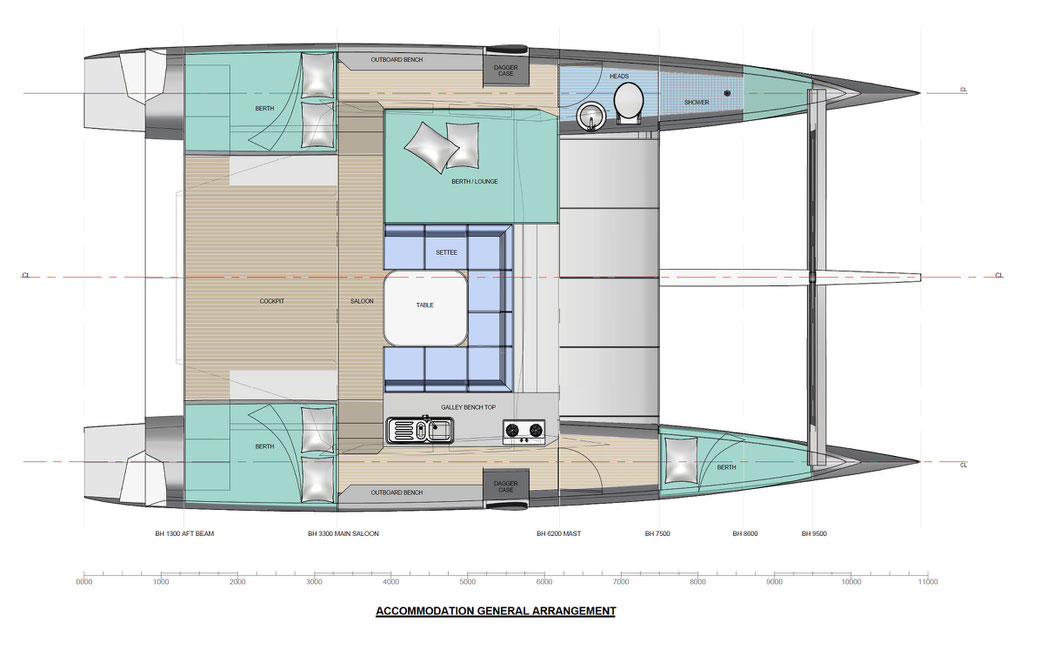

Raku 36 Accommodation Layout

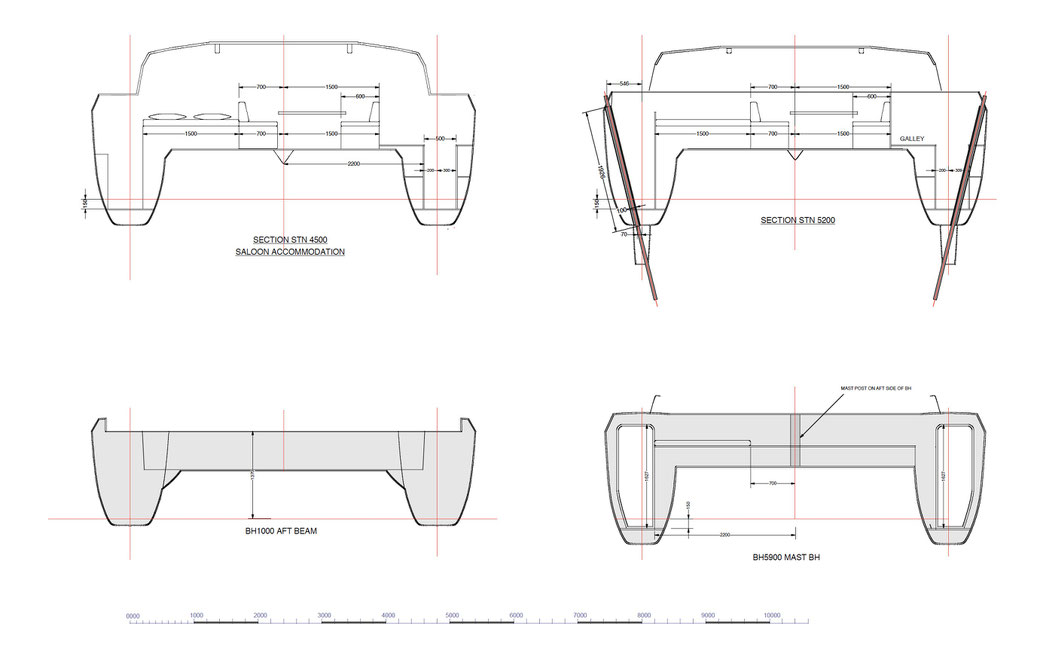

Raku 36 Section Drawings

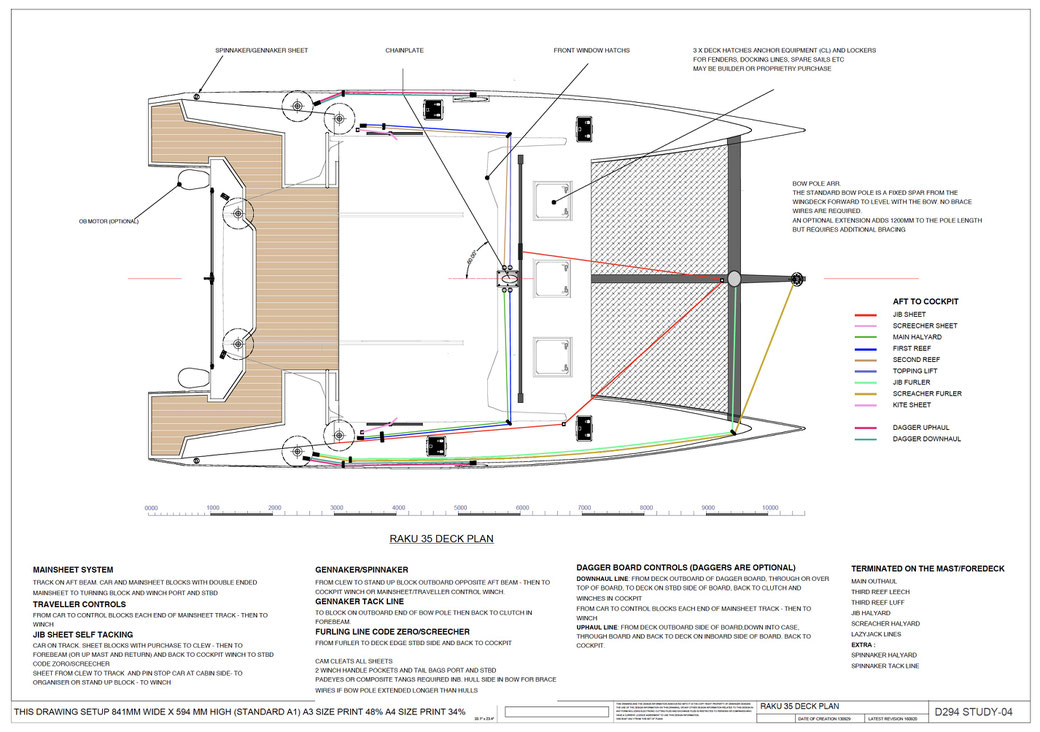

Raku 36 Deck Plan

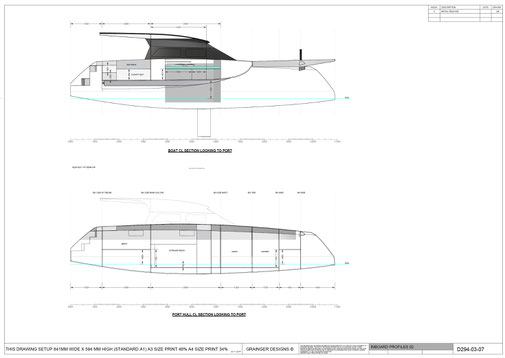

Raku 36 Inboard Profiles

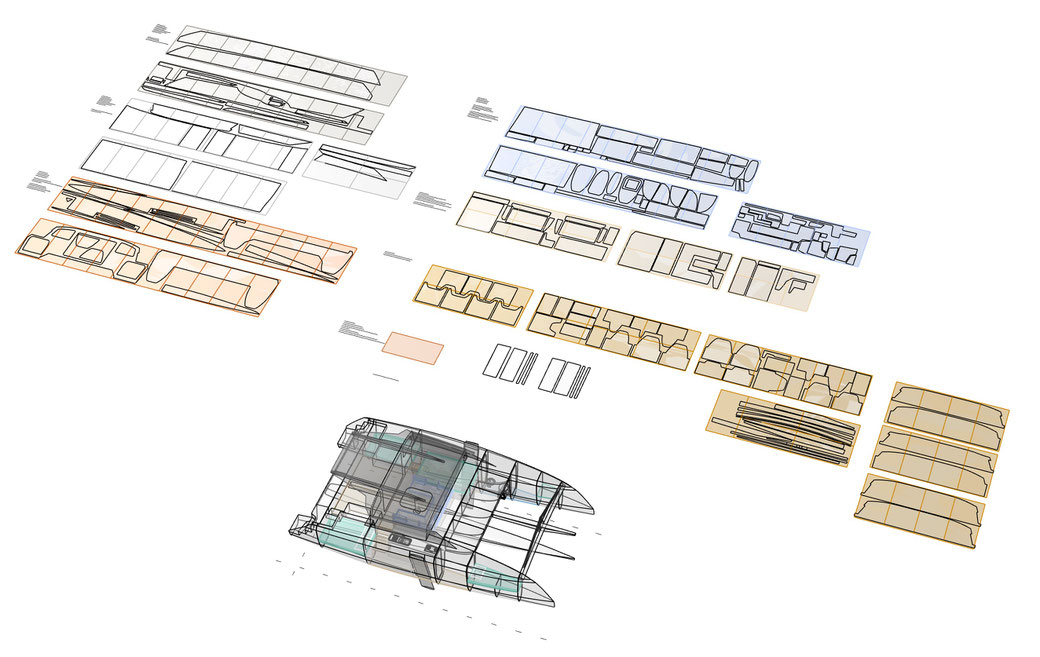

Raku 36 Constuction Kit

Raku 36 Keel and Rudder Options

Electronic cutting files are supplied with the plans for all of the composite components. A Duflex kit is available from VDL Composites in Europe and ATL Composites in Australia supply DuFlex kits to Australia dn the rest of the world.

Enquire now for pricing on kits, plans and full custom build. graingerdesigns@gmail.com
